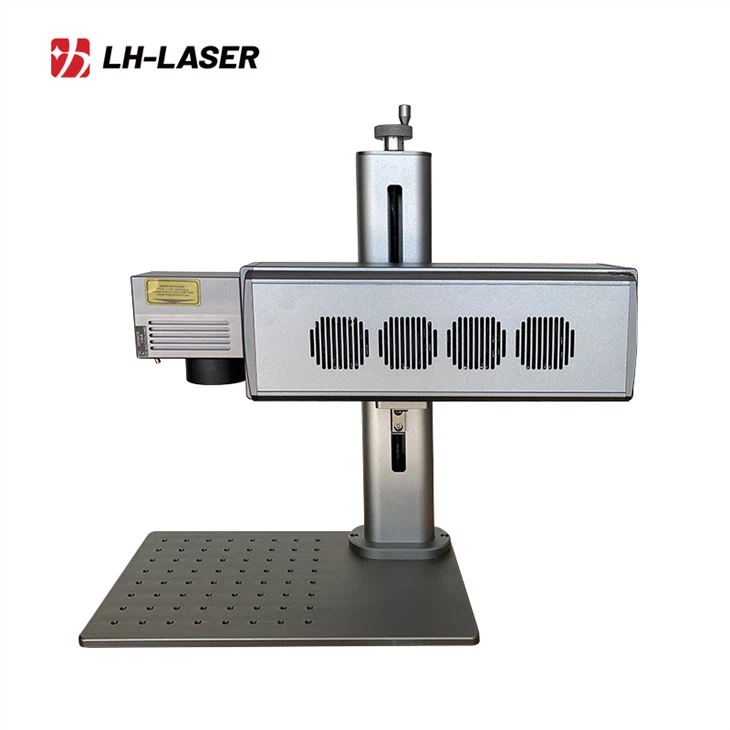

Compact Portable Txhua -hauv-Ib Fiber Laser Npav Tshuab

Khoom Taw Qhia

Qhov no compact, portable, tag nrho - nyob rau hauv -ib fiber laser npav tshuab integrates ib tug siab -kev ua tau zoo laser qhov chaw nrog ib tug ntse tswj system, xa qhov tseeb plug- thiab - ua si functionality. Nws ua tau zoo laser engraving, mus tas li etching, thiab ua tau zoo coding ntawm ntau yam ntaub ntawv xws li hlau thiab tawv, ntsib ntau yam kev xav tau los ntawm kev lag luam qhia rau tus kheej customization. Nws txoj kev tsim qauv tshem tawm cov txheej txheem kev teeb tsa nyuaj, muab lub teeb yuag yooj yim rau kev siv zog tsis muaj qhov cim txhua lub sijhawm, nyob qhov twg.

laser marking machine

Khoom zoo

1. Compact thiab Portable, Ultra-Kev ua haujlwm yooj yim
Lub cev sib xyaw ua ke tshem tawm txoj kev sib dhos thiab kev debugging, muab tawm - ntawm - lub - lub thawv ua haujlwm. Nws lub teeb pom kev zoo tso cai rau kev txav mus los ntawm cov chaw ua haujlwm tsis muaj zog, ntsib ntau yam kev xav tau thoob plaws cov kab ntau lawm, kev cob qhia, thiab kev ua haujlwm hauv teb.
2. Kev ua tau zoo, kev kos npe meej
Siv lub siab -zoo fiber ntau laser nrog tshwj xeeb beam zoo, ua kom pom tseeb, intricate, thiab mus tas li cov cim ntawm ntau yam ntaub ntawv xws li hlau, tawv, thiab yas. Muab cov kab zoo thiab cov txiaj ntsig kev tshaj lij.
3. Kev ruaj ntseg ntse, tsis muaj teeb meem -Kev tu dawb
Features ib tug ua tau - nyob rau hauv ntse tswj system thiab kev ua kom txias txias, kom ruaj khov thiab txhim khu kev qha kev khiav hauj lwm thaum lub sij hawm ncua kev siv. Kev tsim kho kom zoo thiab ruaj khov nrog ntev - cov khoom tseem ceeb uas kav ntev yuav txo tau cov nqi tu tsis tu ncua.

laser marking machine 4

Khoom Parameters

Laser zog	20W/30W
Lub wavelength	1064nm ua
Rov ua dua zaus	20-80KHz
Beam zoo	m²<1.2-1.5
Rov ua dua	Tsawg dua los yog sib npaug li 0.01mm
Marking ceev	Tsawg dua lossis sib npaug li 8000mm / s
Yam tsawg kawg kab dav	0.01mm ib
Marking qhov tob	0.005-1mm Real-time adjustable
Motherboard interface	USB 2.0
Dimension	500 * 230 * 495 hli
Yam tsawg kawg nkaus	0.5 hli
Net nyhav	9,2kq ua
Laser hom	Tag nrho -hauv- ib qho kev sib xyaw fiber ntau laser
Lub zog tag nrho	Tsawg dua lossis sib npaug rau 600W / Tsawg dua lossis sib npaug rau 800W
Txoj kev txias	Cua txias
Kos thaj tsam	100 * 100mm / 150 * 150mm / 300 * 300mm (yeem)
Txhawb cov duab thiab cov ntawv nyeem	PLT, DXF, AI, JPG, PNG, BMP, thiab lwm yam.
Ua haujlwm voltage	AC110V-220V ± 10% 50Hz-60HZ
Environmental xav tau	Kub: 5-35℃txheeb ze humidity: 5-85% Tsis condensation, yeej tsis muaj plua plav.

fiber laser marking machine

Khoom Paub meej

1. Lifting kov

Saj zawg zog qhov siab hloov kho kom yooj yim thiab kev nplij siab ntawm kev ua haujlwm.

2. Integrated fiber ntau laser

Laser optical txoj kev tag nrho -hauv- ib qho kev sib xyaw ua ke, compact thiab portable, yooj yim thiab yooj yim.

3. Galvanometer system

Galvanometer scanning system muaj optical scanner thiab servo tswj.

High - ceev digital system.

Zoo heev marking zoo tsis distortion.

4. Teb lo ntsiab muag yuav tsum

Zoo heev Optical Sensitivity

Uniform Illumination

High System daws teeb meem

5. Ua haujlwm platform

Porous positioning kev npaj

Saj zawg zog hloov ntawm cov khoom txoj hauj lwm

Compact qauv yooj yim ua

6. Dual lub teeb liab qhov chaw

Muab ob npaug rau- point coincidence txhais tau hais tias qhov kev tsom xam qhov tseeb, nkag siab thiab yooj yim rau kev khiav lag luam, txhim kho kev ua haujlwm zoo heev.

laser marking machine 5

Cov khoom siv

Kev Ua Hlau: Mus tas li kos cov lej cim, QR cov lej, thiab cov cim npe ntawm cov cuab yeej thiab cov khoom siv.
Cov Khoom Taw Qhia: Tus kheej engraving thiab branding rau cov khoom xws li tawv khau thiab handbags, ua tiav cov ntsiab lus intricate yam tsis muaj kev puas tsuaj rau cov khoom.
Cov Khoom Siv Hluav Taws Xob & Cov Khoom Siv Hluav Taws Xob: Kom meej meej cim cov lej qauv thiab cov lus qhia tshwj xeeb ntawm cov yas casings thiab chips.
Khoom plig Craftsmanship: Kev cai engraving ntawm cov qauv thiab cov ntawv ntawm cov ntaub ntawv xws li jade thiab siv lead ua kom tau raws li tus kheej customization xav tau.
Khoom noj khoom haus & Pharmaceuticals: Ua kom muaj kev nyab xeeb thiab huv si hnub tsim khoom thiab batch naj npawb coding ntawm cov ntim tshuaj thiab lub raj mis yas.
